You are here: Home » Products » Cable seal » Double Color Normal Hexagonal Cable Seal

PRODUCT DETAIL

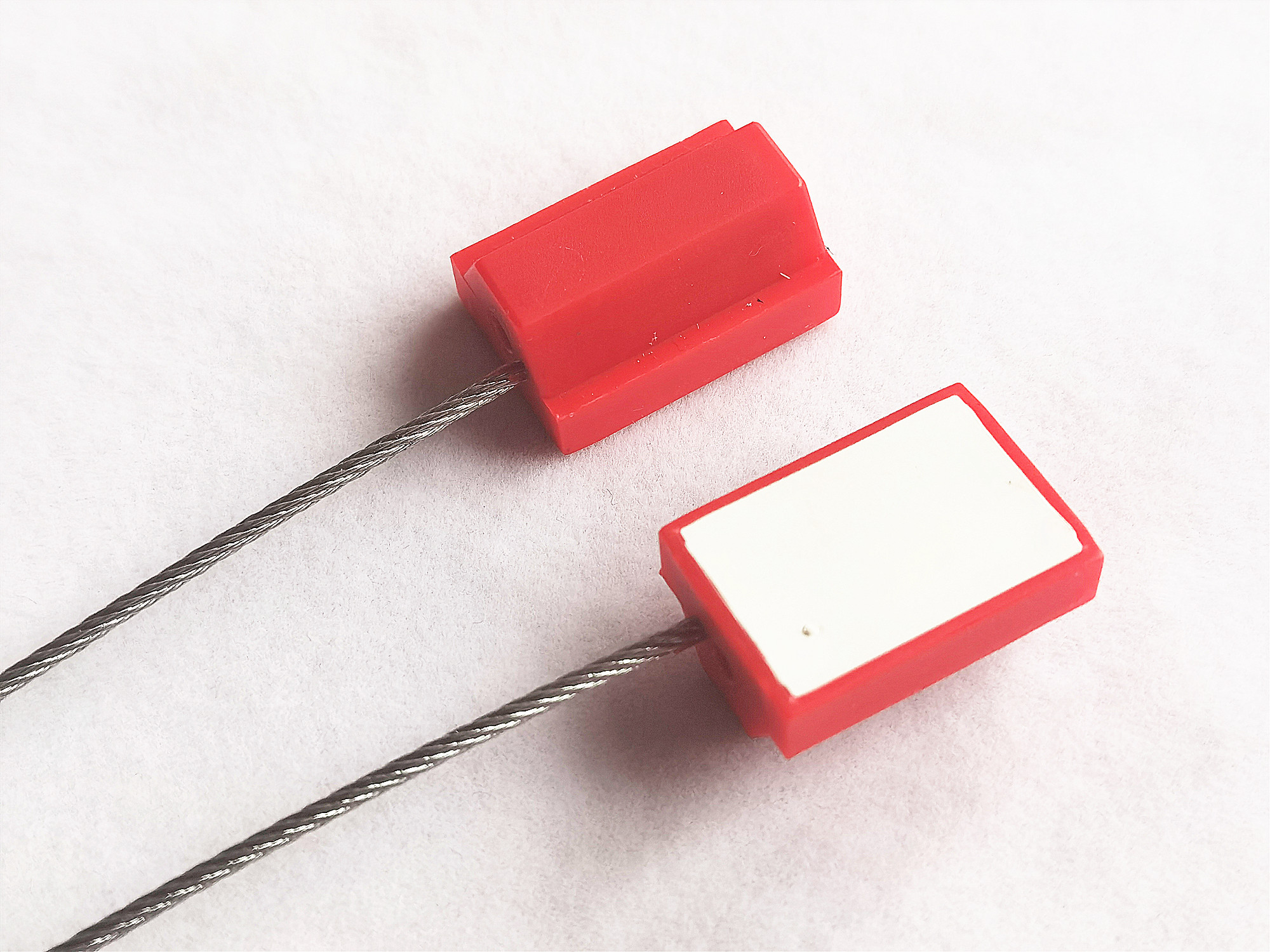

Double Color Normal Hexagonal Cable Seal

loading

Share to:
sharethis sharing button
1、1.8mm galvanized steel NPC rope wire
2、popular for rail cars, truck doors, meters, etc.
Availability:
  • XGS-091DC

  • Thunderseal

  • 091 cable seal

  • 10000PCS

  • ABS+zinc alloy+stainless steel

Seal Classification
Double Color Hexagonal Cable Seal

Double colors are injectioned directly.not by welding.

Load to Failure : >180kgs


Material
The lock housing is made with IRON CORE and covered with plastic ABS.
The wire is galvanized steel NPC rope wire.


Printing
Laser engraving or Hot-stamp
Company Logo/Name
Sequential number
Bar code decoration is also available


Package
For 250mm length cable one:
100pcs per transparent plastic bag
1000pcs per carton
Net weight: 16kgs
Gross weight: 17kgs
Measure: 32*29*17cm


Color Painted
Custom color available.

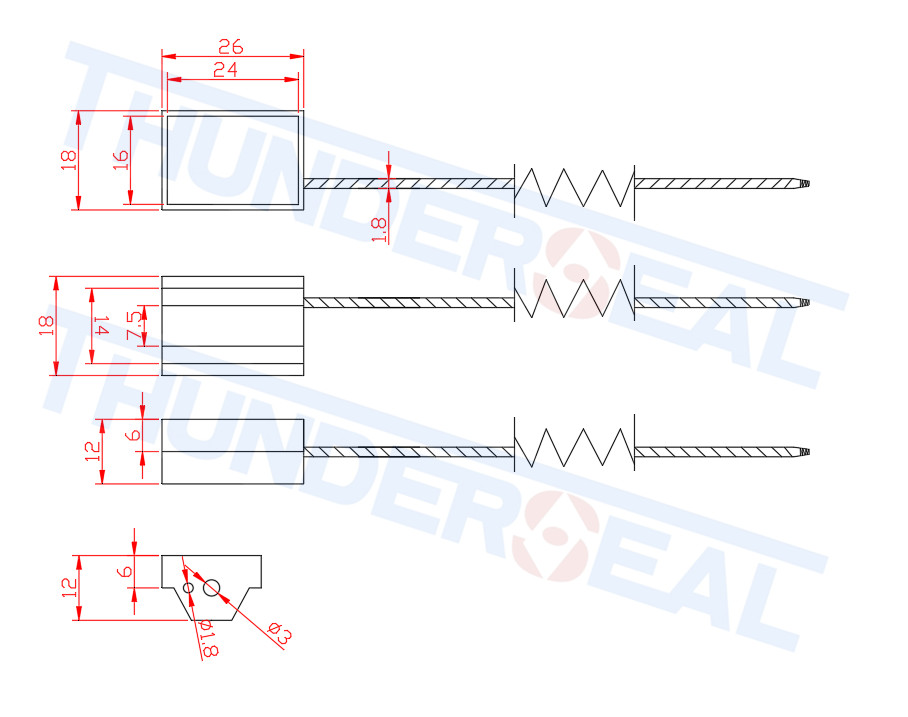

Size Drawing


091结构示意图.jpgsize of XGS-091DC
