You are here: Home » Products » Cable seal » Zinc Bodied Plastic Covered EZ Loc Plus Cable Seal

PRODUCT DETAIL

Zinc Bodied Plastic Covered EZ Loc Plus Cable Seal

Share to:

1、Zinc bodied with metal wheel lock insert
2、ISO 17712:2013 High Security Seal and C-TPAT Compliant
3、barcoding and laser tag optional

  • XGS-AL02
  • Thunderseal
  • AL02 cable seal

Seal Classification

High Security Seal

2.0mm diameter one ,Load to Failure : >300kgs

2.5mm diameter one ,Load to Failure : >400kgs


Material

The lock housing is made with Zinc and covered with plastic ABS.

The wire is galvanized steel NPC rope wire. Wire diameter:2.0mm and 2.5mm available

Inner structure: Stainless steel gear locking, not normal ball hoodles.

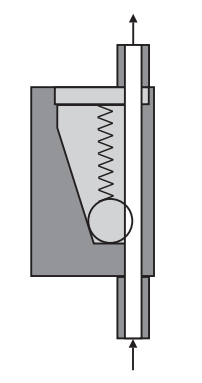

Lock structure as below:



Printing

Laser engraving or Hot-stamp

Company Logo/Name

Sequential number

Bar code decoration is also available


Package

For 2.5*300mm one:

100pcs per transparent plastic bag

500pcs per carton

Net weight: 14kgs

Gross weight: 14.5kgs

Measure: 32*29*17cm


Color Painted

Custom color available.

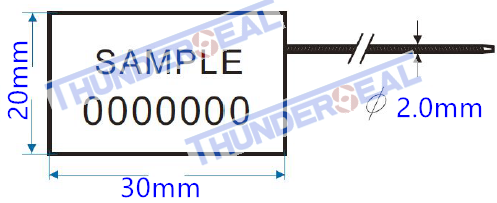

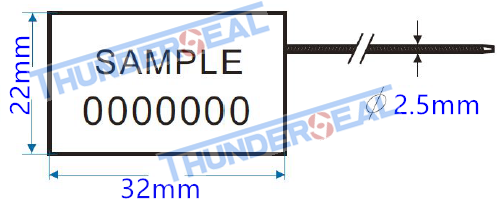

Size drawing
